More cool things to do with your pals sin & cos.

contents

Introduction

Hi, I'm back. Thanks for all the positive comments on my previous article. I really wanted to write some more but I didn't really know what about. But a while ago some talking started on the forums about mapped spheres and this got me excited and in just a couple of hours I whipped up some example programs. Now all I needed to do was write an article.

This stuff is going to be a bit more advanced than last time, so if you feel uncomfortable with trigoniometry it might be useful to read my previous article in issue 5 again, because it covers all the basics. In fact, this article doesn't cover any new theory at all. All of the stuff that is covered in here is also covered in the first lesson, only we are going to put it together in a different way and do something different with it.

This time there are 6 tested, fully working code examples with this article. You can download them all here, together with a makefile. Simply unzip them and type "make", it should work.

So we want to do a mapped sphere. That's really simple. All we need to do is to go through each point of the screen and apply the mathematical formula p = arcsin (-y/r) and q = arcsin (x / (cos (p)*r)) to get the coordinates on the sphere. Of course I don't have to explain how this formula is derived. What is that, I do have to? Guess you didn't read my first article...

On second thought, I have to slow down a bit here. Let's start by talking about mapping. Not spherical mapping, but mapping in general. I can think of different kinds of mapping, like cylindrical mapping. Or mapping a texture to a three dimensional polygon. In all these cases we want to map a flat, rectangular bitmap to something which is not flat and rectangular. The reason to do this is that if something is flat and rectangular it is also a bit boring. To make it look cooler, we can bend and curve it until it is anything but flat and rectangular.

Some examples of games that use mapped spheres: Star control 2, xcom (the sphere is actually made up of polygons but the lighting effect is the same as described below). A mapped sphere would do well in any space simulation program. Mapped cylinders are a bit rarer: Mickey Mania makes clever use of it in the tower level and in the Moose pursuit level, and the intro scene of Donkey Kong Country 3 has one (you can tell I'm a nintendo fan, can you?)

What are we mapping with? We have a destination bitmap (the screen, the bitmap on which the sphere should go) and the source bitmap (the thing that should be mapped onto the sphere). If the source bitmap were a map of the earth, we would make a sphere that looks exactly like the earth seen from space. In between we have to do some transformation and there is where the sine and cosine come in to play.

Just as with mode 7 and with rotated sprites we have to start with the destination, not the source. We go through all pixels of the destination bitmap and try to figure out which pixel of the source bitmap should go there. This approach has two advantages: we won't skip any pixels, and we won't draw any double pixels.

But the difficult part is the figuring out part. What we need here is a basic formula that gives us the coordinates (p, q) on the source bitmap given the coordinates (x, y) on the destination bitmap. This formula however, is such a mysterious and complex beast that it takes a 65 page scientific article to write down even a simplified form. So that is completely outside of the coverage of this article. Oh no wait, I remember, I wrote it down a couple of paragraphs ago. Now I only have to explain how it is derived.

Cylindrical mapping

You know what, let's make it a bit simpler. Let's start with a cylinder instead of a sphere. A cylinder is round too, just a bit less round than a sphere and therefore also a bit simpler. You see, the more things look like a rectangle, the easier they are. A cylinder is halfway between a sphere and a rectangle.

Let's define coordinates. Take a look at fig 1. We are going to make a cylinder in the way we did it in kindergarten. We take a nice flat piece of paper (the source bitmap) and roll it up. We can stick the ends together with a bit of sticky tape. The bitmap wraps around so that the topright pixel of the source bitmap is right next to the topleft pixel. If the bitmap was 360 pixels wide the horizontal coordinate (p) would be the angle between a point, the 0 point and the axis of the cylinder. The coordinate q is symply the vertical position on the cylinder, 0 being the top.

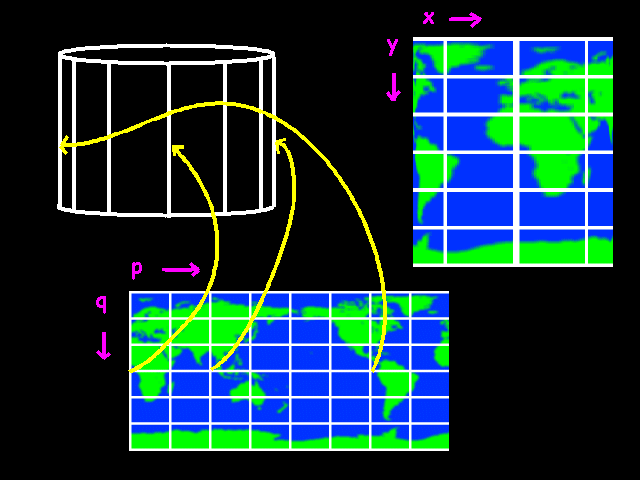

figure 1. Here you see the coordinate system (x, y) used to describe the target bitmap and (p,q) for the source bitmap.

Suppose we wanted to go from source to destination (like normal people would do). We want to know for each position (p, q) on the cylinder where on the screen it should go. How would we do that? coordinate y is simple. It simply equals q. No problems there. x is more difficult. If the angle p is 0, the x coordinate should be the center of the cylinder plus the radius. If p is 90 degrees, the x coordinate should be in the center. If p is 180, it should be the center minus the radius. The function which does exactly that is: the cosine!

So:
x = center + radius * cos (p)
y = q

We are still missing the z coordinate here. A cylinder is a three-dimensional object so we can also calculate the z coordinate for each point. The z axis is perpendicular to the screen. When we are going to display the cylinder, we just throw away the z axis. After all bitmaps are 2 dimensional so we don't need the third axis. Note that this is parallel projection, meaning that things don't get smaller if they are farther away. In other words there is no perspective.

I'll give the formula for the z coordinate anyways. It might come in usefull if we are going to do lighting and rotation and so on.

x = center + radius * cos (p)
y = q
z = center + radius * sin (p)

You see, if we change p, x and z together describe a complete circle.

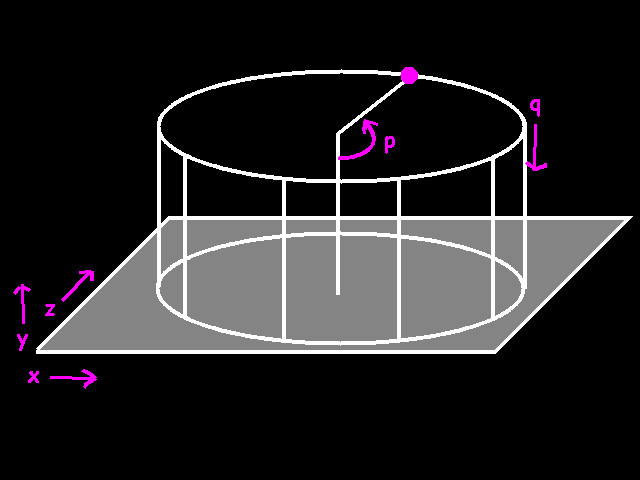

figure 2. Here you see how p describes a circle in the x,z surface.

With these functions we can calculate the x, y and z of any point on the cylinder. But since we want to work from the destination out, we already know the x and the y! We have to turn these formula's around, like this:

q = y
cos (p) = (center - x) / radius

We're a bit stuck with the formula for p. How to get rid of the cos(p)? There is a function which does the inverse of the cosine. This is called the arccosine. So our formula's become:

q = y
p = arccos ((center - x) / radius)

There you are! As you see we don't know the z coordinate, but we don't need to know it in order to calculate p and q.

All we need now is a code example.

/*
    mapped_cylinder() maps a bitmap onto a cylinder.

    BITMAP *target = bitmap to display
    int cx = horizontal position of the center of the cylinder
    int top = position of the top of the cylinder
    int r = radius of the cylinder
    int h = height of the cylinder
    BITMAP *map = the thing that is going to be mapped onto the cylinder
*/
void mapped_cylinder (BITMAP *target, int cx, int top, int r, int h, BITMAP *map)
{
    int x, y; // coordinates on the target bitmap
    int p, q; // coordinates on the source bitmap

    // for each line:
    for (y = 0; y < h; y++)
    {
        //q is the same throughout this line. we can calculate it already
        //y has a range from 0..h, and we have to change that into a
        //range from 0..map->h
        //so we use this expression:
        q = y * map- >h / h;

        // for each pixel in the line:
        for (x = - r; x < r; x++)
        {
        fixed temp; // a temporary variable we use for calculating p

        // right now, x is between -r and r.
        // x must be between 1 and -1 before we can use asin
        // so therefor we divide by r
        temp = itofix(x) / r;

        // now we can use the asin() function
        temp = fixasin (temp);
        // the result is an angle between -64 and 64.

        // the next expression changes that to angle between 0..64 and 192..255,
        // which is equivalent, because 192 == -64,
        // but postive integers are a bit easier to deal with
        temp &= 0xFFFFFF;

        // the actual p has to cover the whole bitmap
        // so we go from 0..256 to 0..bmp->w
        p = fixtoi (temp) * (map->w-1) / 256;

        // now we know p and q. copy a pixel.
        putpixel (target, x + cx, top + y,
              getpixel (map, p, q)
              );
        }
    }
}

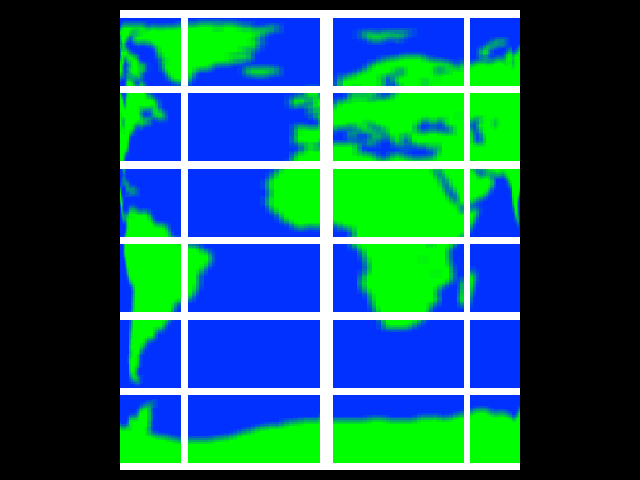

figure 3. Output of sphere1.c

maybe this line:

q = y * map->h / h;

puzzles you. You see, I said before, q is equal to y (q = y). This is not exactly true if the target bitmap is not the same size as the source bitmap. Of course we have to take that into account.

A simple trick to do that is to look at the range of values that you have. We want y to cover the whole vertical range of the cylinder. So y ranges from 0 to h (h is the height of the cylinder). Also, we want q to cover the entire source bitmap. So q ranges from 0 to map->h (the height of the source bitmap). So:

y -> 0..h
q -> 0..map->h

Now the question is: we know y, how to calculate q?

if we divide y by h, y ranges from 0..1. This is useful because now we can multiply by map->h, and the range is from 0..map->h

float temp = y; // temp ranges from 0..h
float temp = temp / h; // temp now ranges from 0..1
q = temp * map->h // q; ranges from 0..map->h

But if you are using ints, remember to do the multiplication before the division, because then we will have less problems with rounding errors. And note: this trick is also useful if you want to go from degrees to radians.

float degrees = 120; // degrees can range from 0..360
float temp = degrees / 360; // temp ranges from 0..1
float radians = temp * 2 * PI; // radians ranges from 0..2 * PI
fixed allegro_degrees = temp * 256; // allegro_degrees ranges from 0..256

Spherical mapping

Ok, now on to a sphere.

Again we'll use p and q to for the coordinates on our source bitmap. We are going to use the same coordinate system that is used for the ultimate sphere, the earth itself. q is the latitude. 0 at the equator, -90 degrees at the north pole and 90 degrees at the south pole. p is the longitude. 0 degrees in London, 150 degrees in Sydney and 220 degrees in Los Angeles. You see that the source bitmap will be a bit stretched at the top and the bottom. There is nothing to be done about that.

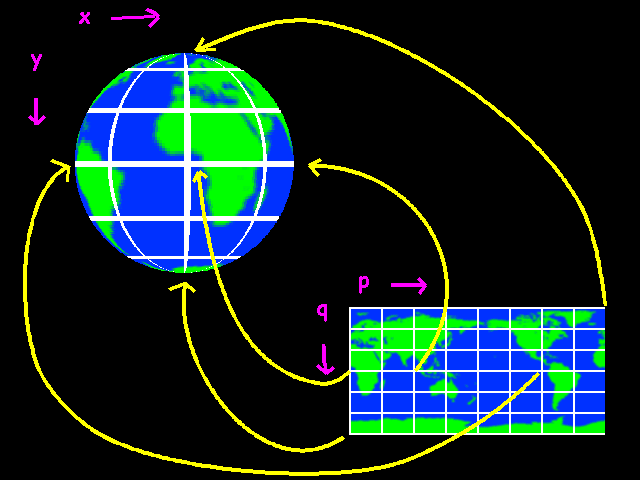

figure 4. Here you see how the source bitmap is mapped onto the sphere.

How do we go from x,y to p,q? Again we'll do it the sane way first and go from p,q to x, y. And let's not forget z this time. x and z kind of rotate with p again, so let's start from this:

x = center + radius * cos (p)
y = q
z = center + radius * sin (p)

Well, it's obviously not correct, because now we get a cylinder again. The y coordinate should also have some sine in it, because it reaches its maximum when q is 90, and when q is over 90 it should go back again.

x = center + radius * cos (p)
y = center + radius * sin (q)
z = center + radius * sin (p)

Well this gives us some kind of 2-way cylinder. The problem is that the circles that x and z form are smaller and smaller if q goes to 90 or -90. Only if q is 0, x and z are just right. Actually we need to scale x and z down a bit.

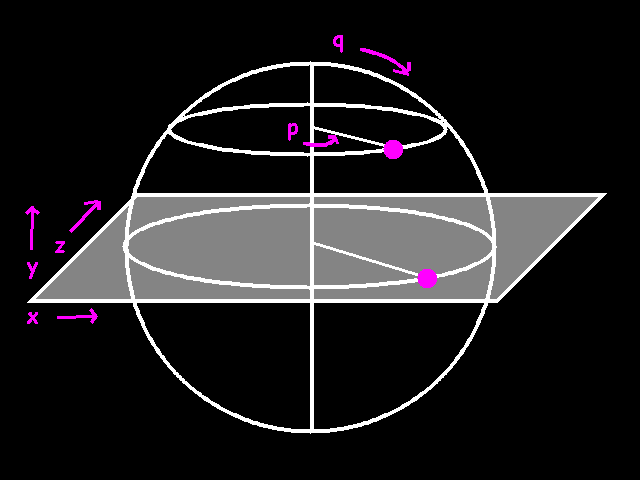

figure 5. Here you see how p describes a circle in the x,z surface, and how the circles get smaller as q goes more and more towards the poles of the sphere.

x = center + radius * cos (p) * scale_factor
y = center + radius * sin (q)
z = center + radius * sin (p) * scale_factor

The scale factor should be 0 when q is 90 or -90, and 1 when q is 0.

x = center + radius * cos (p) * cos(q)
y = center + radius * sin (q)
z = center + radius * sin (p) * cos(q)

Voilá

Now inverting these formulae:

sin (q) = ((center - y) / radius)
q = arcsin ((center - y) / radius)

that's the easiest one. Now we can calculate q, we can move on to p.

cos (p) = ((center - x) / (radius * cos(q))
p = arccos ((center - x) / (radius * cos(q))

If we calculate q first, we can calculate p too with this formula. As you see, again we don't need to know z in order to calculate p and q.

So the plan is to:

Let's bring these formula's to practice in an example:

/*
    mapped_sphere() maps a bitmap onto a sphere and displays it.

    BITMAP *target = bitmap to display onto
    int cx, cy = center of the sphere
    int r = radius of the sphere
    BITMAP *map = bitmap to map onto the sphere
*/
void mapped_sphere (BITMAP *target, int cx, int cy, int r, BITMAP *map)
{
    int x, y; // coordinates on the target bitmap
    int p, q; // coordinates on the source bitmap

    // for each line
    for (y = -r; y < r; y++)
    {
        fixed temp_p, temp_q;
        fixed q_cos;

        // y ranges from -r to r now.
        // for asin() we need a number between -1 and 1.
        // therefor we need to divide by r
        temp_q = itofix (y) / r;
        // now we can apply the formula
        temp_q = fixasin (temp_q);
        // we store the cosine of temp_q, because we will need it a couple of times
        // later on
        q_cos = fixcos (temp_q) * r;

        //we can calculate q already
        //temp_q is an angle ranging from -64 to 64
        //q must range from 0 to map->h
        //so we use the following expression:
        q = fixtoi (temp_q + itofix (64)) * (map->h-1) / 128;

        // instead of making x go from -r to +r,
        // we skip the parts in the corners that lay outside the sphere
        for (x = - fixtoi (q_cos) + 1; x < fixtoi(q_cos) - 1; x++)
        {
              // at the very top of the sphere, q_cos can reach 0
              // this can create a "division by zero" error
              // so we need to check that first
              if (q_cos != 0)
                  // if not zero, we can go ahead and apply the formula
                  // to calculate p
                  temp_p = fixasin (fixdiv (itofix (x), q_cos));
              else
                  temp_p = 0;

              //temp_p ranges from -64 to 64 now
              //again, we change that so we only have positive numbers
              temp_p &= 0xFFFFFF;

              // now we can finally calculate p
              // we change a range from 0..64 - 192..255 to
              // a range from 0..map->w
              p = fixtoi (temp_p) * (map->w-1) / 256;

              // we know p and q. copy a pixel.
              putpixel (target, x + cx, y + cy,
                  getpixel (map, p, q));
        }
    }
}

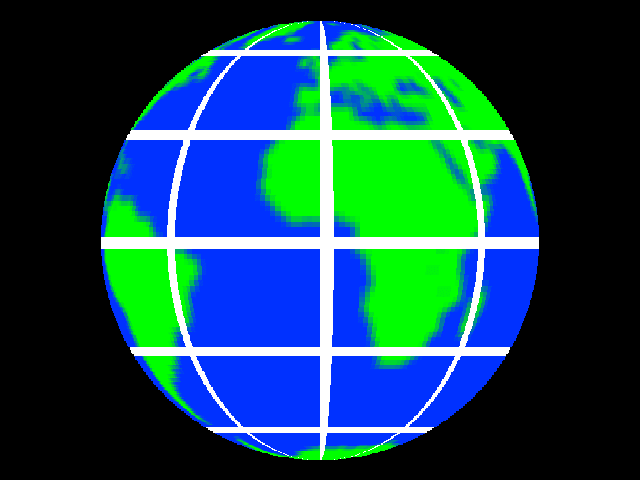

figure 6. Output of sphere2.c

Looks nifty, huh? No? Ok we can do better. Let's make the thing rotate. Not just simply rotate around one axis as the earth does, that's too easy. No we want to have full 3- dimensional rotation, so we can view the earth from any possible camera position.

A rotating sphere

I explained 2-dimensional rotation in my previous article, remember? Now we are going to do exactly the same thing for three dimensions. If we rotate with a degrees around the z axis, we get:

new_x = x * cos (angle) - y * sin (angle)
new_y = x * sin (angle) + y * cos (angle)
new_z = z

well, that's just exactly the same as we did before. The formula's for rotating around the x and y axes is the almost the same, you'll get the idea. We don't really need them either, because allegro has all these things built in. Isn't that just great? You really gotta love allegro.

Ok so let's get over this again. We have a point (x, y, z) in space, and we want to rotate that around the z-axis with a degrees. The new x, y and z can be calculated with the formula I just gave you, but to do it the allegro way, we'll use this piece of code.

MATRIX m;
fixed a, x, y, z, new_x, new_y, new_z;
get_z_rotate_matrix (&m, a);
apply_matrix (&m, x, y, z, &new_x, &new_y, &new_z);

There you have it. Exactly the same thing, but without having to remember any formula's. To rotate around three axes at the same time, we can do it this way:

get_rotation_matrix (&m, a, b, c);
apply_matrix (&m, x, y, z, &new_x, &new_y, &new_z);

Where a, b and c are the rotation angles around the x, y and z axis respectively.

As you see we really need the z coordinate this time. A sphere really is 3-dimensional and in order to rotate in 3 dimensions, we really need to know the coordinates in all 3 dimensions.

So first, how to calculate the z coordinate? Remember the magic property of circles that we used to draw one in the previous article? Each point on a circle has exactly the same distance to the center. We calculate distance with pythagoras theorem, so:

x^2 + y^2 = radius^2

The same goes for a sphere, but in three dimensions. Each point on a sphere has exactly the same distance to the center. We get:

x^2 + y^2 + z^2 = radius^2

Remember that we know x and y, because that are the coordinates on the destination bitmap. We also know the radius, so we can use this formula to calculate z.

z^2 = radius^2 - x^2 - y^2
z = sqrt(radius^2 - x^2 - y^2)

So the plan is to:

Let's do some code.

/*
    get_mapped_sphere_ex() is similar to get_mapped_sphere(), but also takes
    a rotation matrix as argument to draw a rotated sphere.

    BITMAP *target = bitmap to display onto
    int cx, cy = center of the sphere
    int r = radius of the sphere
    BITMAP *map = bitmap to map onto the sphere
    MATRIX *rotmat = rotation matrix
*/
void mapped_sphere_ex (BITMAP *target, int cx, int cy, int r, BITMAP *map,
    MATRIX *rotmat)
{
    int x, y; // coordinates on the target bitmap
    int p, q; // coordinates on the source bitmap
    for (y = -r; y < r; y++)
    {
        fixed q_cos = fixcos (- fixasin (itofix (y) / r)) * r;
        for (x = - fixtoi (q_cos) + 1; x < fixtoi(q_cos) - 1; x++)
        {
              fixed newq_cos, temp_p, temp_q; // some temporary variables
              fixed newx, newy, newz; // x, y and z after rotation
              fixed z; // z before rotation. we don't have to calculate x and y

              // calculate z
              // using pythagoras and the formula for a sphere:
              // x^2 + y^2 + z^2 = r^2
              // we know x, y and r
              z = fixsqrt (r * itofix (r) -
                  x * itofix (x) - y * itofix (y));

              // apply the rotation matrix to x, y, z.
              // put the result in newx, newy, newz
              apply_matrix (rotmat, itofix(x), itofix(y), z,
                  &newx, &newy, &newz);

              //just as in sphere2.c, we need to check if q_cos is 0
              //however, q_cos depends on y, and we just calculated a new y
              //thus we have to calculate q_cos again.
              newq_cos = fixcos (temp_q) * r;
              if (newq_cos != 0)
              {
                  // it is possible to use temp_p
                  // temp_p = fixasin (fixdiv (itofix (x), q_cos));
                  // however, I found I get less rounding errors if I use
                  // fixatan2 instead. The principle remains the same.
                  temp_p = fixatan2 (fixdiv (newx, newq_cos), fixdiv (newz, newq_cos));
              }
              else
                  temp_p = 0;
              temp_p &= 0xFFFFFF;

              p = fixtoi (temp_p) * (map->w-1) / 256;

              // calculate q
              temp_q = fixasin (newy / r);
              q = fixtoi (temp_q + itofix (64)) * (map->h-1) / 128;

              putpixel (target, x + cx, y + cy,
                  getpixel (map, p, q)
                  );
        }
    }
}

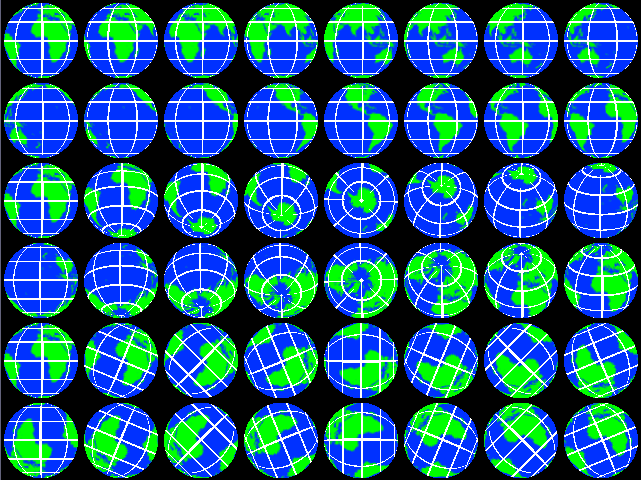

figure 7. Output of sphere3.c

Note that in this example I use atan2 to calculate p. The reason is simply that this way there are less rounding errors. The implementations of fixasin and fixacos are less accurate as the parameter approaches 1 or -1.

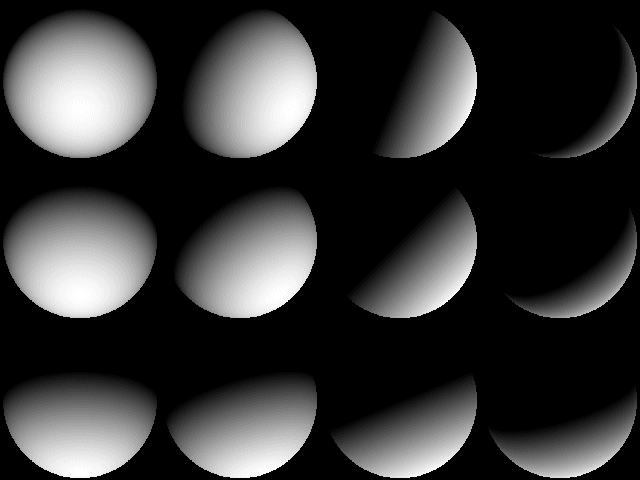

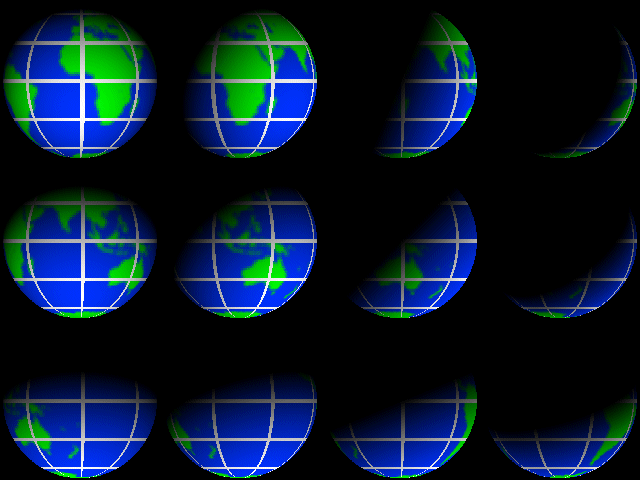

Lighting

When I was in Finland last year, it was pretty cold most of the time. In fact Finland is such a cold country that when the lakes finally melted in May, some people went on and on that it was so early in the year that the lakes melted and that the climate was definitely warming up. But that is besides the matter. The question is, why is Finland such a cold country?

Because it is way up in the north you say? Duh. What does that have to do with anything?

The real reason is that the sun is always so low above the horizon. That means that a certain amount of light from the sun falls on a much larger surface (see figure 8). That means that the energy of the sun is distributed over a larger area and therefore it is much colder.

figure 8. Here you see how the amount of light that falls on a surface depends on the angle of impact of the light. Note how the same amount of light, falling at a steeper angle in (I), projects a smaller surface of light. That means that the same amount of light is distributed over a smaller area. If we know angle "a", we can calculate that surface.

In other words, the amount of light on a surface is proportional to the cosine of the normal of the surface with the light source.

The higher the sun is, the more heat it brings to the surface of the earth. The higher the sun is, the less of the surface has to be heated with the same sunrays. As you can see from figure 8, the power of the sun is proportional to the surface that a certain amount of light falls on. We can calculate this using the surface using the cosine of the angle alpha of the rays of the sun with the normal of the surface of the earth.

light = cos (angle between surface normal and light)

(The normal is a vector that is perpendicular to the surface. Its an arrow that sits on the surface and points away to outer space)

We can use this formula to light our sphere. If we know the angle of the light and the normal on each point of the surface of the sphere, we can create a nice lighted sphere.

Imagine that there is a vector (=arrow) from the center of our sphere to the surface at a certain point. Let's call this point P. P has the coordinates x, y and z. Now think of the normal of the sphere at point P. It is another vector that points from the center of the surface to outer space. You see, both vectors point in the same direction. So the vector from the center to P is in principle the same as the normal at point P.

Now the direction of the light. We'll assume that we have some weird light source at infinite distance, so the light rays are parallel. This means we can simply use one vector for the light source for each point of the sphere.

Now we'll need to know the angle between these two vectors. I hear somebody whispering... What does he say? Listen, he says: "look in the first article." D'oh! In the first article it says you can use the cross product to calculate the angle between two vectors. The cross product for three dimensions is:

arccos (angle) = normal_x * light_x + normal_y * light_y + normal_z * light_z

The arccosine and the cosine negate eachother so we just remove them and we get:

light = cos (angle)
arccos (angle) = normal_x * light_x + normal_y * light_y + normal_z * light_z
light = normal_x * light_x + normal_y * light_y + normal_z * light_z

and this is a number between -1 and 1. If it is negative, it means we are at the night-side of the sphere, so everything from 0 down should be totally dark.

Our new plan

Here is the code:

/*
lit_sphere() draws a plain, solid sphere with lighting.

BITMAP *target: bitmap to draw onto
int cx, cy: center of the sphere
int r: radius of the sphere
fixed longitude, latitude: direction of the lightsource
*/
void lit_sphere (BITMAP *target, int cx, int cy, int r, fixed longitude, fixed latitude)
{
    int x, y;
    // no p and q this time, because there is no source bitmap

    // calculate the light vector
    fixed lightx, lighty, lightz;
    lightx = fixmul (fixsin (longitude), fixcos(latitude));
    lighty = fixsin (latitude);
    lightz = fixmul (fixcos (longitude), fixcos(latitude));

    for (y = -r; y < r; y++)
    {
        fixed q_cos = fixcos (- fixasin (itofix (y) / r)) * r;
        for (x = - fixtoi (q_cos) + 1; x < fixtoi(q_cos) - 1; x++)
        {
              // -64 < angle_p < 64
              fixed light; // light factor
              int lighti; // idem, but int instead of fixed
              fixed xnormal = itofix (x);
              fixed ynormal = itofix (y);
              fixed znormal = fixsqrt (r * itofix (r) -
                  x * itofix (x) - y * itofix (y));
              light = dot_product (
                  // normal of sphere surface
                  xnormal / r, ynormal / r, znormal / r,
                  // light source vector
                  lightx, lighty, lightz
              );
              // if light is negative, we are in the shadow region
              // so it should be black
              if (light < 0) light = 0;
              lighti = fixtoi (light * 255);
              putpixel (target, x + cx, y + cy,
                  makecol (lighti, lighti, lighti));
        }
    }
}

figure 9. Output of sphere4.c

Let's do that again, but with a texture

/*
mapped_lit_sphere() maps a bitmap onto a sphere and applies lighting at the same time
This is essentially mapped_sphere_ex() and lit_sphere() combined. Look at
those functions for more comments.

BITMAP *target = the bitmap to draw onto
int cx, cy = center of the sphere
int r = radius of the sphere
BITMAP *map = bitmap to map onto the sphere
MATRIX *rotmat = rotation of the sphere
fixed longitude, latitude = position of the light source, as if it were right above
    that spot on the earth
*/
void mapped_lit_sphere (BITMAP *target, int cx, int cy, int r, BITMAP *map,
    MATRIX *rotmat, fixed longitude, fixed latitude)
{
    int x, y; // coordinates on target bitmap
    int p, q; // coordinates on source bitmap

    // calculate the light vector
    fixed lightx, lighty, lightz;
    lightx = fixmul (fixsin (longitude), fixcos(latitude));
    lighty = fixsin (latitude);
    lightz = fixmul (fixcos (longitude), fixcos(latitude));

    for (y = -r; y < r; y++)
    {
        fixed q_cos = fixcos (- fixasin (itofix (y) / r)) * r;
        for (x = - fixtoi (q_cos) + 1; x < fixtoi(q_cos) - 1; x++)
        {
              fixed light;
              int lighti, color;
              fixed temp_p, temp_q;
              fixed newx, newy, newz;
              fixed z = ftofix (sqrt((double)(r * r - x * x - y * y)));

              // rotate x, y and z
              // put the result in newx, newy and newz
              apply_matrix (rotmat, itofix(x), itofix(y), z,
                  &newx, &newy, &newz);

              // see if we are near the poles
              temp_q = - fixasin (newy / r);
              if (temp_q != 0)
              {
                 // again, I chose to use fixatan2 instead of
                 // temp_p = fixasin (newx)
                 // so we'll have less problems with rounding errors.
                 temp_p = fixatan2 (newx, newz);
              }
              else
                  temp_p = 0;
              temp_p &= 0xFFFFFF;


              q = fixtoi (-temp_q + itofix (64)) * (map->h-1) >> 7;

              temp_q = fixcos (temp_q) * r + itofix (1);

              p = fixtoi (temp_p) * (map->w-1) >> 8;

              light = dot_product (
                  // normal of sphere surface
                  itofix(x) / r, itofix(y) / r, z / r,
                  // light source vector
                  lightx, lighty, lightz
              );

              if (light < 0) light = 0;

              //lighti = fixtoi (light * 255);
              lighti = fixtoi ((light << 8) - light);
              color = getpixel (map, p, q);
              putpixel (target, x + cx, y + cy, lit_color (color, lighti));
        }
    }
}

figure 10. Output of sphere5.c

We are nearly at the end of this lesson now. The last example was pretty slow. For the sake of keeping things simple, I didn't apply any optimizations to any of the examples. I managed to optimize the last example so that I can display a lit sphere with a radius of 220 in 32 bit mode at 300 fps on my Ahtlon 1800+. How I did that? I'll deal with that in the next article.

Here is another example of what you can do with the stuff that is explained in this article.

Day and Night

Last year, when I was in Finland... (No, not again!) The funny thing about the place is that it never gets dark at night in the summer. You can simply sit outside until early in the morning and drink beer and grill sausages and swim in the lake and it simply doesn't grow dark at all.

This effect occurs because the rotational axis of the earth is tilted, and in the months June and July the northern hemisphere receives more light from the sun than on average. It would be interesting to make a computer simulation of the earth and to see where on earth it is light and dark at a certain time.

The next example draws a map of the earth in cylindrical projection (cylindrical in the cartography sense). However it calculates for each point on the map where on a sphere it would be and what amount of light it would receive. The effect is a night and day map of the earth.

/*
     lit_projection () draws a bitmap onto another bitmap, but lights each
     individual pixel as if it was on a sphere with a light shining on it from
     one direction.

     BITMAP *target -> the bitmap to draw onto
     BITMAP *map -> the bitmap to draw
     fixed longitude, latitude -> the position of the lightsource.
*/
void lit_projection (BITMAP *target, BITMAP *map,
     fixed longitude, fixed latitude)
{
    int x, y; // coordinates on target bitmap
    int p, q; // coordinates on source bitmap
    fixed p_angle, q_angle; // the same, but scaled to a 256 degree circle
    // the range of p is 0..bmp->w, but the range of p_angle is always 0..255

    // calculate the light vector
    fixed lightx, lighty, lightz;
    lightx = fixmul (fixsin (longitude), fixcos(latitude));
    lighty = fixsin (latitude);
    lightz = fixmul (fixcos (longitude), fixcos(latitude));

    for (y = 0; y < target->h; y++)
    {
        int q = y * map->h / target->h;
        p_angle = ((itofix(y) / target->h) * 128) - itofix (64);
        for (x = 0; x < target->w; x++)
        {
             int p = x * map->w / target->w;
             fixed light;
             int color, lighti;
             q_angle = (itofix (x) / target->w * 256);

             light = dot_product (
                  // normal of sphere surface
                  fixmul (fixsin (p_angle), fixcos (p_angle)),
                  fixsin (p_angle),
                  fixmul (fixcos (q_angle), fixcos (p_angle)),
                  // light source vector
                  lightx, lighty, lightz
             );
             if (light < 0) light = 0;
             lighti = fixtoi (light * 255);

             color = getpixel (map, p, q);
             putpixel (target, x, y, lit_color (color, lighti));
        }
    }
}

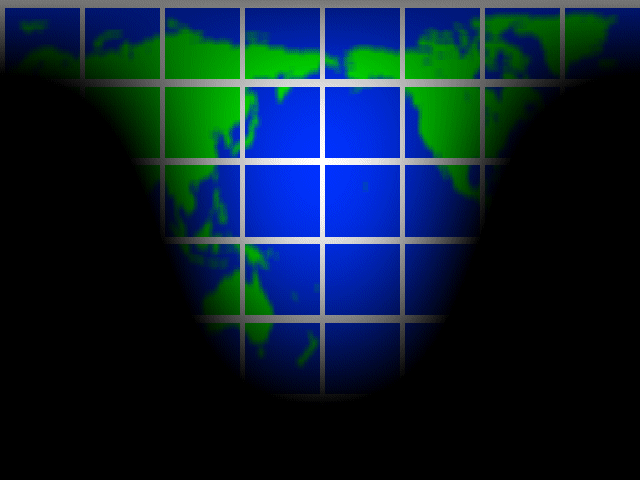

figure 11. Output of sphere6.c

The earth is not flat. It is round.... like a pancake! - H. Finkers
